• Model NO.：1600 wet pan mill
• Condition：New
• Material：High Wearable Steel
• Spare Parts：Grinding Ring, Grinding Rollers
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：FCL or LCL
• Specification：Wet pan mill
• Trademark：Hengchang
• Origin：China
• HS Code：8474209000
• Production Capacity：100 Sets Per Months

Basic Info.

Model NO. 1600 wet pan mill Condition New Material High Wearable Steel Spare Parts Grinding Ring, Grinding Rollers After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package FCL or LCL Specification Wet pan mill Trademark Hengchang Origin China HS Code 8474209000 Production Capacity 100 Sets Per Months

Product Description

Very Popular African Market Gold Mining Plant Gold Ore Wet Pan Mill for Gold Refining Procesisng1. Wet Pan Mill Introduction
Wet pan mill also called gold round mill, it is versatile ore grinding equipment not only for grinding the minerals but also for gold amalgam. It is a best replacement for medium-small capacity ball mill, owing to the excellent performance for wet crushing, small investment and high output.
It is widely applied to the grinding and beneficiation of all kinds of metal minerals, non-metal minerals, rare metal and other materials. Such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and so on.

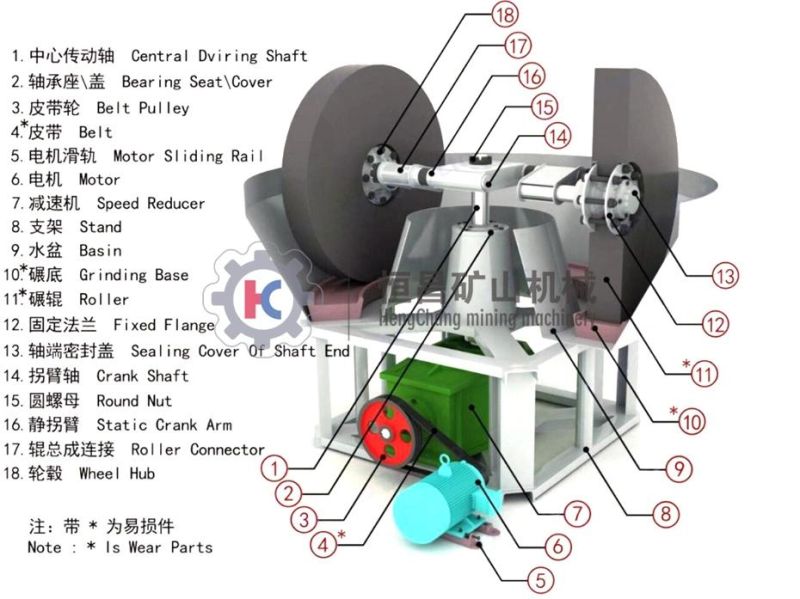

2. Gold Wet Pan Mill Structure


3. Gold Wet Pan Mill Technical Parameter

Model	Feeding size (mm)	Output size (mm)	Capacity (t/h)	Speed (r/min)	Motor power (kw)	Weight (kg)
900	<15	0.6-0.07	0.3	17-19	5.5	3000
1000	<20	0.6-0.07	0.5	16-18	5.5	4500
1100	<20	0.6-0.07	0.6-0.8	16-18	7.5	5000
1200B	<20	0.6-0.07	0.8-1.2	16-18	7.5	5500
1200A	<20	0.6-0.07	1-1.3	21-23	7.5	5500
1300	<20	0.6-0.07	1.5	16-18	15	7500
1400	<20	0.6-0.07	1.5-2	16-18	18.5	8500
1500B	<30	0.6-0.07	2.5-3	20-22	22	12300
1500A	<30	0.6-0.07	3-4	20-22	22	13300
1600	<30	0.6-0.07	4-5	20-22	30	14500

4. Wet Pan Mill Working Principle
Working Principle of Gold grinding machine:
Wet pan mill adopts the working mode of the wheel-type grinding: firstly, the electric motor drives the power to the speed reducer, and the torque is transmitted to the upper horizontal shaft through the large vertical shaft driven by the speed reducer. Then, the tie rods installed at both ends of the horizontal axis are transmitted to the grinding wheel, so that the grinding wheel generates driving force, and the counterclockwise rotation motion is performed along the horizontal direction of the horizontal axis. The working wheel can not only revolve around the large vertical axis of the wet mill, but also rotate around the central axis of the roller, and the grinding disc is fixed. The added ore material is subjected to the pressing force from the weight of the drum itself in the mill. When the roller rotates and rotates, the huge friction generated by the grinding disc is completely crushed after repeated extrusion, smashing and grinding.


5. Successful Case
6. Packing and delivery

7. Related Products

 8.About our factory:
Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd. is located in No.3 Chuangye Road. Guzhang In dustrial Park. Shicheng County. Ganzhou City. Jiangxi Province. China.Our company is engaged in the mineral processing equipment research, development, design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. And mainly the manufacture of the products like as Shaking table. Flotation equipment. Crushing equipment. Magnetic separator. Screening equipment. Classifying equipment. Agitation tank, Feeding equipment. Gravity separation equipment. Wet separation equipment. Spiral chute. Saw-tooth wave jig and Diaphragm Jig. Grinding equipment. Ball mill. Slurry pump. Centrifugal pump, Conveying equipment.

We manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten,lead. zinc. tin. molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile,diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal,precious metals and other minerals. And we have export qualifications, our products sell well all over the world for several years, especially exported to Brazil. India. Indonesia.South Africa. Somalia, Philippines. Malaysia. Sudan, Nigeria. Iran, Russia, Ghana. Kazakhstan Kyrgyzstan.Cambodia,Vietnam,Korea,Mongolia and other countries.



9. FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.not dealer.Direct factory sale makes price more competitive.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
