• Model NO.：PEW
• Inlet Size：Various According to Different Model
• Condition：New
• Color：Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Life
• Test&Installation：Engineer Assigned
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. PEW Inlet Size Various According to Different Model Condition New Color Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Life Test&Installation Engineer Assigned Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 40-850tph

Product Description

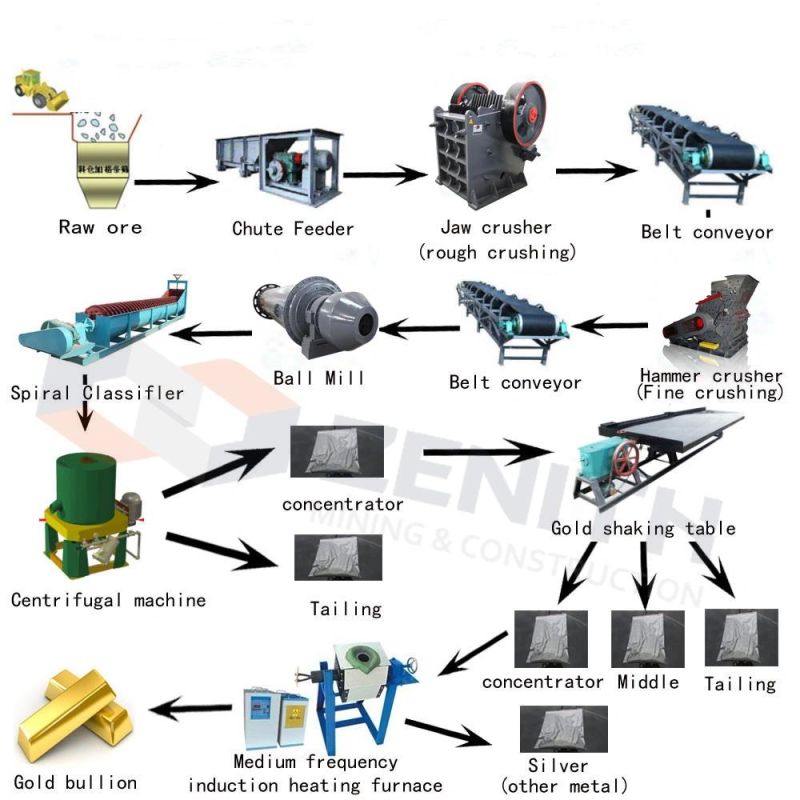

Introduction of Mineral Processing Technology Flow

Mineral processing means the production process in which the extracted ore goes through several procedures finally becomes the concentrate in accordance with the smelting requirements. Mineral processing flow mainly includes crushing by crusher, separating by vibrating screen, grinding by ball mill and classifying by classifier; The separation of minerals consists of weight, flotation, and electric separation, etc. Dehydration of minerals includes enrichment, filtration, drying, and other procedures. The equipment of mineral processing cover feeder, crusher, ball mill, classifier, vibrating screen, rocking bed, magnetic separator, mix tank, flotation machine and so on. The specific mineral processing flow is as follows: The extracted ore should be crushed by jaw crusher initially.
 When it gets the reasonable fineness, it is transported into ball mill by elevating conveyer and feeder, and is milled by ball mill. The subtle milled ore gets the next procedure: Classification. There is a theory that if the weights of solid particles are different, the sedimentations will be different, and the mixed ore can be classified by screw classifier.

 The classified ore gets into magnetic separator. Since the specific magnetization coefficients of ores are different, the magnetic substance of mixed ore is separated from others with magnetic and mechanical force. The mineral matter, which has been separated by magnetic separator initially, is transported into flotation machine by, and different medicines are added according to different characteristics of ore, so that the needed ore is separated from others. Since the separated ore are wet, they should be dewatered by thickner initially, and dried by drier. Finally, the dry minerals come into being.



Mining Machinery-jaw crusher technical data:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	8-185	Y355L1-8/185	4140×2660×3560
