• Model NO.：D100
• Energy Saving：Energy Saving
• Warranty：1 Year
• Color：Multi Color
• Customized：Customized
• Condition：New
• After-sales Service：After Service Support
• Recovery Rate：97%
• Upgrading Ratio：1000 Times
• Effective Recovery Particle Size：0-5mm
• Processing Capacity：50-80t,H
• Advantage：Easy Operation
• Water Required：50-80 L,Min
• Power Required：0.75kw
• Machine Shipping Weight：3500kg
• Overall Dimension：2300*2000*2300
• Aftersale Service：Lifelong
• Transport Package：Packing with Iron
• Specification：CE, ISO, TUV, SGS
• Trademark：Jinshibao
• Origin：China
• HS Code：8474100000
• Production Capacity：100 Set,Month

Model

D20

D30

D60

D80

D100

Capacity (T/H)

1-3

2-7

15-30

30-70

60-100

Feeding size (mm)

0-3

0-3

0-5

0-5

0-6

Feeding density

<50%

<50%

<50%

<50%

<50%

Fluidization water(m3/H)

1-2

4-6

10-20

20-35

40-60

Concentrates weight(kg)

2-3

8-15

30-40

60-70

70-80

Water pressure(Mpa)

0.06-0.1

0.1-0.15

0.1-0.2

0.1-0.2

0.1-0.2

Motor power(kw)

0.75

1.5

4

11

18.5

Dimension(mm)

800×700×980

1050×900×1150

1600×1400×1800

2100×1800×2100

2300×2000×2200

Weight(kg)

270

420

1600

2400

3550

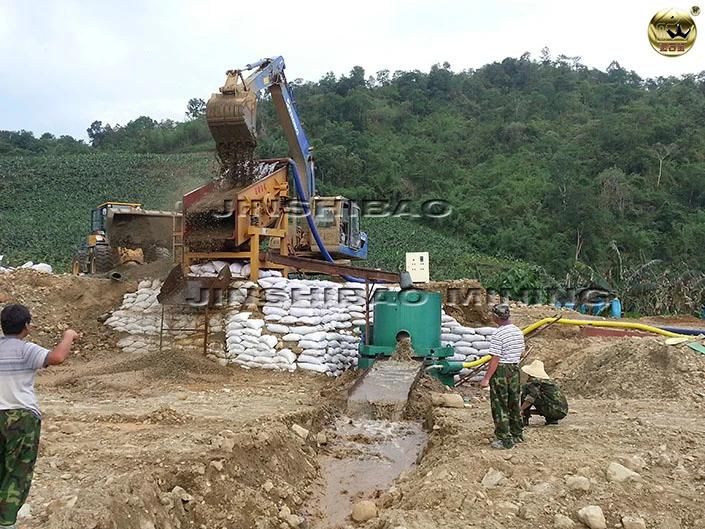

2. Application of  Flowchart Of The Processing Of Gold

 Since 1985, three models of Centrifuge Machine have been developed. Application shows that the recovery can be as high as 99%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a milling size of-0.074mm, the recovery for the natural gold is expected up to 98%. For that natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours. And the upgrade ratio is up to 1,000 times.

 3. Features of  Centrifuge Machine

High recovery rate: Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 0.04mm.

High efficiency: D60 Centrifuge Machine has a capacity of 10-20TPH, and D100 Centrifuge Machine has a capacity of 50-80TPH. Only one machine could give you such a high capacity and high recovery rate. It's the most efficient concentration equipment in our factory.

Easy to install: only a small leveled place required. It's a complete machine, before starting it, only need to connect the fluidization water and power.

Easy to adjust: there are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.

Easy to operate:  after finishing the water pressure and feeding size adjust, what U have to do is to fetch the concentrates every 2-4 hours. (Depending on the grade of the mine)

No pollution: this Centrifuge Machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.

Reliable:  this Centrifuge Machine gets a simple & tough structure, the main body is made by strong steel, and the concentrate cone is made by stainless steel. And the bearing is greased to keep it running well.
