OEM Same Quality VSI Crusher Wear Parts Tungsten Carbide Bar

Myloo Carbide Tool Ltd.
  • After-sales Service：Online or Site
  • Warranty：Online or Site
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Standard：AISI, BS, JIS, GB, ASTM, DIN
  • Surface Treatment：Without Processing
  • Manufacturing Process：Sintering

Base Info

  • Model NO.：standard
  • Material：Tungsten Carbide
  • S.T.R.：1800 - 2000MPa
  • Density：14.90g,cm3
  • Grain Size：1.0 - 1.6um
  • Usage：for VSI Crusher Rotor Tip
  • Transport Package：Standard
  • Specification：Hardness: 90.5 - 91.0HRA
  • Trademark：Myloo
  • Origin：Zigong, China
  • HS Code：820900
  • Production Capacity：400-500tons,Year

Description

 At a slow rotor speedAt a fast rotor speedLower reduction ratioHigher reduction ratioLess rotor wearMore rotor wearHigher capacity for set powerLower capacity for set powerGood shaping factorsExcellent shaping


The Ultimate Crushing Solution


VSI Crusher are unique due to its crushing process. Whereas most other type of crusher use metallic parts to
crush, VSI uses the rock fed into the machine to crush itself. This crushing process produces the best shaped
aggregates. The high velocity impact crushing achieved in VSI improves the shape of stone, reducing product
moisture and thus easing the screening operations. With rock-on-rock crushing action there is advantage of
cost savings, durability and unmatched performance in variety of crushing tasks.

OEM Same Quality VSI Crusher Wear Parts Tungsten Carbide Bar

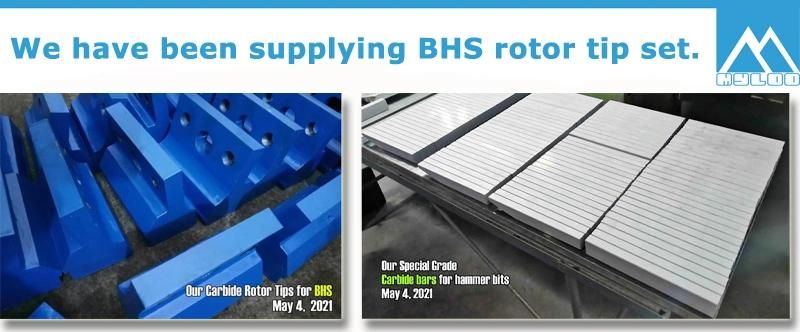

We provide carbide bar well welded rotor bits as a set of wear part to make sure overall quality is
superior to most competitors.
OEM Same Quality VSI Crusher Wear Parts Tungsten Carbide Bar

OEM Same Quality VSI Crusher Wear Parts Tungsten Carbide BarOEM Same Quality VSI Crusher Wear Parts Tungsten Carbide BarOEM Same Quality VSI Crusher Wear Parts Tungsten Carbide BarOEM Same Quality VSI Crusher Wear Parts Tungsten Carbide Bar
OEM Same Quality VSI Crusher Wear Parts Tungsten Carbide Bar
OEM Same Quality VSI Crusher Wear Parts Tungsten Carbide BarOEM Same Quality VSI Crusher Wear Parts Tungsten Carbide Bar


Q&A:

1. Why You Say Your Tungsten Carbide Bars Have Much Better Performance?
-Coarse enough of grain size to be favorable for welding, especially in cold weather.
- Lower Cobalt without broken, longer wear-resistance.
    We never stop finding better grade with much longer wear-resistance to save clients' cost. Now we are testing
    new grade with coarse grain size for Europe market, it works well. Also we are making another 3 kinds of new
    grade to test and compare with current grade. If it goes well, next step we will try to test it for America market first.

2.How You Control the Quality of The Carbide Bars?
-Much strict control on scrap carbide to ensure stable quality of carbide powder.
   All is from qualified carbide rods with grain size 0.8-1.0um, like end mill, reamer, drills. Other carbide
   manufacturers usually use carbide drill bits or anvil with grain size 1.2/1.6/2.0 mixed.
-Our special creative sintering process to ensure uniform grain size 2.4um.
   Carbide manufacturers usually sinter it by Intermediate Frequency Furnace with temperature 1500ºC, that the
   heat-difference can be 70-80ºC causing non-uniform grain size. We use Vacuum Sintering Furnace with "secret"
   temperature without heat-difference to ensure uniform grain size 2.4um.

3.Do You Accept OEM&ODM?
    Yes, for sure, we can cutomize the grade and shape upon your drawings or samples. Such as, make the grain coarse or add
    more cobalt to increase its hardness. Make balance on hardness and toughness.
