• Model NO.：LYS1100
• Energy Saving：Energy Saving
• Warranty：1 Year
• Color：Multi Color
• Customized：Customized
• Condition：New
• Capacity：0.6-2.5t,H
• Water Consumption：0.5-6t,H
• Deck Size：4500*1850*1560mm
• Usage：Mining Separation
• Application：Gold Mining
• Transport Package：Nude Package
• Specification：4500*1850*1560mm
• Trademark：WKD
• Origin：Shicheng, Jiangxi
• HS Code：8474100000
• Production Capacity：320 Sets Monthly

Basic Info.

Model NO. LYS1100 Energy Saving Energy Saving Warranty 1 Year Color Multi Color Customized Customized Condition New Capacity 0.6-2.5t/H Water Consumption 0.5-6t/H Deck Size 4500*1850*1560mm Usage Mining Separation Application Gold Mining Transport Package Nude Package Specification 4500*1850*1560mm Trademark WKD Origin Shicheng, Jiangxi HS Code 8474100000 Production Capacity 320 Sets Monthly

Product Description

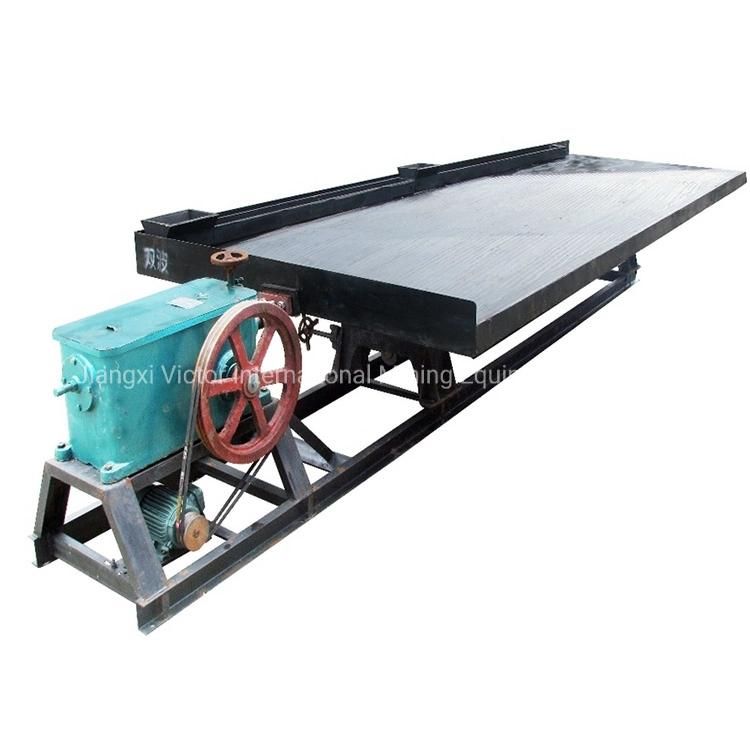

Gravity Separator Small Laboratory Shaking Table for Ore Sample Testing Shaking table, as one of the gravity mining machines, applicable to nonferrous metals, ferrous metals and rare metals mineral, like gold, tungsten,

tin, tantalum, iron, manganese, chrome, titanium, bismuth and lead, which the size ranges from 2-0.037mm, also recovery of Au, Cu, Ag from various

of slags, PCB, waste wire and cable, battery scrap, to improve recovery ratio and protect environment.

Recovery material size ranges are: coarse sand (0.5 mm to 2 mm), fine sand (0.074 mm to 0.5 mm) and slime (-0.074 mm). Effective mineral

recovery size range is 0.22 mm to 2 mm. Structure
 Consists of transmission, electronic motor or by diesel, slope adjuster, bed, ore groove, water groove and lubricating system

1. Transmission
The transmission is of rugged construction and requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil pump.

2. Decks
The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom and are easy to clean, not have common maintenance. The fiberglass decks have characteristic of water-resistance and corrosion-resistance.

3. Feed box and water box
A wooden feeding box with hooper and long water box are attached to the iron of deck, to make feeding evenly.
 Technical Parameters

Model Performance	LY4500	LY3000	LY2100	LY1100
Screen Size(mm)	4500×1850×1560	3000×1620×1100	2100×1050×850	1100×500×430
Stroke length mm	10-30	6-30	12-28	9-17
Frequency tpm	240-420	210-320	250-450	280-460
Horizontal slope °	0-5	0-10	0-8	0-10
Feeding Range mm	2-0.037	2-0.037	2-0.037	2-0.037
Feeding  Density %	10-30	10-30	10-30	10-30
Capacity(t/h)	0.3-2.5	0.2-1.5	0.1-0.8	0.03-0.2
Water consumption	0.4-0.7	0.3-1.5	0.2-1	0.1-0.5
Motor power kw	1.1	1.1	1.1	0.55
Size(mm) l*w*h	5600×1850×860	4075×1320×780	3040×1050×1020	1530×500×800

* Remark:
The shaking table have three distinct deck designs available.
The coarse ore deck is designed for recovering particles size from 0.5mm to 2mm
The fine sand deck is designed for recovering fine particles size from 0.074mm to 0.5mm
The slime deck is designed for recovering super extremely fine particles from 0.15mm to 0.074mm

 Packaging&Shipping




Related Products
Mining Project


Company Information

Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.
With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines,  Mongolia, Vietnam, Thailand etc.

Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table

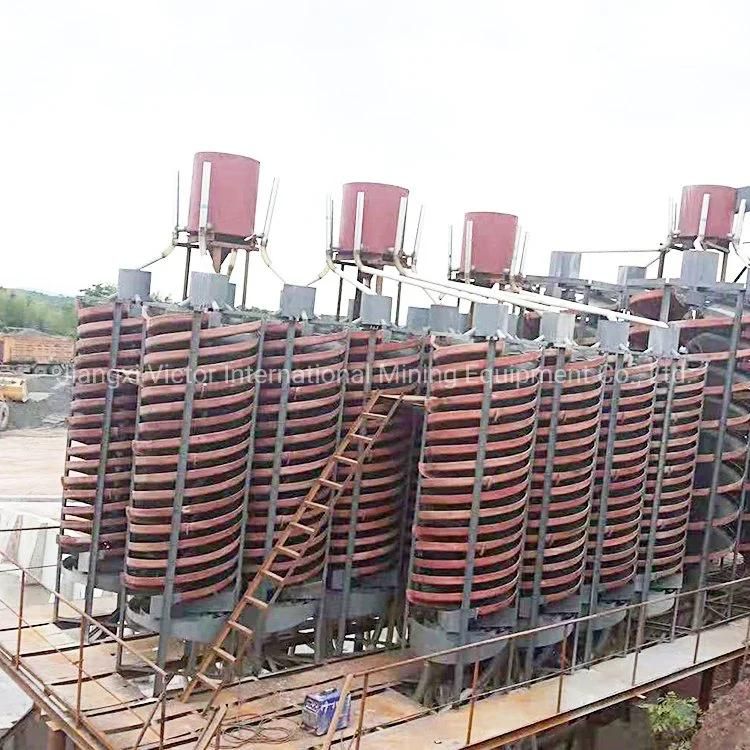

Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Waste recycling machine
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant
