• Model NO.：GS2000
• Energy Saving：Energy Saving
• Warranty：1 Year
• Color：Multi Color
• Customized：Customized
• Condition：New
• After-sales Service：Installation Guide, Spare Part Supplying
• Application：Sand, Mining
• Transport Package：Container
• Specification：Dia. 1.2m
• Trademark：ZHONGJIA
• Origin：Henan China
• HS Code：8474100000
• Production Capacity：100 Set,Year

Basic Info.

Model NO. GS2000 Energy Saving Energy Saving Warranty 1 Year Color Multi Color Customized Customized Condition New After-sales Service Installation Guide, Spare Part Supplying Application Sand, Mining Transport Package Container Specification Dia. 1.2m Trademark ZHONGJIA Origin Henan China HS Code 8474100000 Production Capacity 100 Set/Year

Product Description

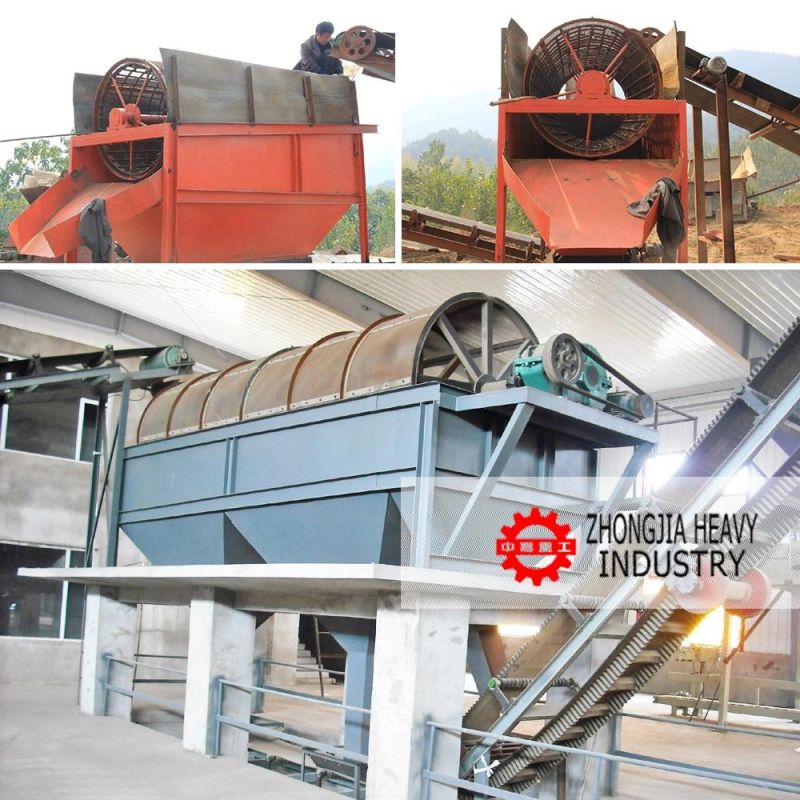

mine separator rotary drum sieve machine

Drum screen is composed of hexagonal drum, frame, funnel, reducer and motor. After the crushed stone enters the drum, the materials are screened by the centrifugal force of drum rotation and jigging. Screen out one by one through different mesh screens. The stones of different specifications are screened out and then fall into the belt conveyor through the funnel and sent to the finished product stockyard. On the one hand, it is screened with the rotation of the drum, and the materials are screened by the centrifugal force of the drum rotation and jigging. On the one hand, the stone with large particle size flows forward along the slope of the drum and is gradually screened out through screens of different mesh sizes. The small stones will fall into their respective funnels after screening, and then be transported out manually or sent to the finished product pile by gravity.


Main features of drum screen:

1. The screen hole is not easy to be blocked.
2. Stable operation and low noise.
3. Simple structure and convenient maintenance.
4. The whole machine has high reliability and less investment.
5. The adopted screen has high screening efficiency and long service life.


Parameter

Model	Screen area (m2)	capacity (t/h)	Diameter (mm)	Length (m)	Power (KW)
GTS1020	2	8	Φ1000	2.5	2.2
GTS-1230	3	10.4	Φ1200	3.5	4
GTS-1235	5	13.8	Φ1200	4	5.5
GTS-1450	10	27.8	Φ1400	5	7.5
GTS-1555	15	47.7	Φ1500	6	11

Service and customers
With the tenet of "Quality First, Customers First", our company specially invites experts from design colleges and universities for technical cooperation, and can provide users with project design, ore identification, small test, and One-stop service including testing, equipment selection, process design, equipment site installation and commissioning. It has provided high-quality equipment for large domestic large-scale concentrators, metal magnesium plants, steel plants and other large-scale projects, is trusted and praised by users serving Panzhihua Iron and Steel, Kunshan Iron and Steel, China Aluminum Group, Three Gorges Water Conservancy and other national key construction projects and thousands of private enterprises.
