2021 Gold Ore Gemini Shaking Table for Sale

Jiangxi Jinshibao Mining Machinery Manufacturing Co., Ltd.
  • Type:Gravity Separator
  • Voltage:Follow Customer′s Request
  • Weight:<1T
  • Material:PP Material
  • Material Feature:Wear Resistant
  • Certification:ISO9001:2008

Base Info

  • Model NO.:60
  • Energy Saving:Energy Saving
  • Warranty:1 Year
  • Color:Follow Customer′s Request
  • Customized:Customized
  • Condition:New
  • After-sales Service:Provide Technical Support
  • Models:Three Models (Gt250,600,1000)
  • Application:Gold , Rock Gold Concentrate Recovery
  • Capacity:115-450kg,H
  • Feture:Fine Gold
  • Transport Package:by Plywood Packaging
  • Specification:1420*1210*1100mm
  • Trademark:Jinshibao
  • Origin:China
  • HS Code:8474100000
  • Production Capacity:200 Sets,Year

Description

Basic Info.

Model NO. 60 Energy Saving Energy Saving Warranty 1 Year Color Follow Customer′s Request Customized Customized Condition New After-sales Service Provide Technical Support Models Three Models (Gt250/600/1000) Application Gold , Rock Gold Concentrate Recovery Capacity 115-450kg/H Feture Fine Gold Transport Package by Plywood Packaging Specification 1420*1210*1100mm Trademark Jinshibao Origin China HS Code 8474100000 Production Capacity 200 Sets/Year

Product Description


2021 Gold ore Gemini Shaking Table for sale

2021 Gold Ore Gemini Shaking Table for Sale2021 Gold Ore Gemini Shaking Table for Sale
Product Introduction:


The Gemeni shaking table has been specifically designed for the recovery of fine gold to a directly smeltable concentrate. Several models are available to cater for feed rates from 115 kg/h up to 450 kg/h. A laboratory unit is also available, treating 30kg/h.
The deck grooves are uniquely designed to optimize the collection of gold particles. The machine can be used to treat low-grade concentrates
and still achieve high gold recoveries and grades.

When deciding on the appropriate operation of the Gemeni table, the following factors need to be taken into consideration:
  • Machine to be fed at constant feed rate
  • Clean, constant pressure wash water is required for optimal separation
  • The removal of fine iron particles (mill media etc) prior to the table using a READING low-intensity magnetic drum separator (LIMS) is recommended
All of the machines are manufactured to strict quality control standards and subject to rigorous testing before shipment.

The high-quality materials of construction used in the manufacturing process, the strict quality control standards and ongoing after-sales support set these units apart from their competition and will ensure both trouble-free operation and optimal separation efficiency achieved in every application.

2021 Gold Ore Gemini Shaking Table for Sale
2021 Gold Ore Gemini Shaking Table for Sale
This Gemeni shaking table features
  • Direct, fixed speed feed system
  • The table can be operated in batch or continuous mode
  • No massive foundation required
  • Available for single or three-phase power supply
  • Simple operation
  • Adjustable feed rate
  • Deck constructed of hard-wearing gel coat with GRP backing.
  • Adjustable "bump stop" to control deck motion amplitude
  • Recessed deck grooves for gold collection
  • Multiple dressing water cock valves for wash water control
  • Central water manifold constructed for resistance to attack by contaminated process water
2021 Gold Ore Gemini Shaking Table for Sale

The Gemeni shaking table comes in 3 sizes/models/capacities:
  • GT60 - up to 30 Kg/hr (65 lbs/hr)
  • GT250 - up to 115 Kg/hr (250 lbs/hr)
  • GT1000 - up to 1/2 ton/hr
Gemeni shaking table Operation

The Gemeni shaking table has been specifically designed for the recovery of fine gold to a directly smeltable concentrate. The direct drive system incorporates a geared motor, driving a crank connected to the table deck. The crank includes a spring connection system to absorb overrun. The bump stop system provides a fine-tuning mechanism. Table tuning is achieved by adjustment of a single screw.

Specifiction for Gemeni shaking table

2021 Gold Ore Gemini Shaking Table for Sale
FeedGT60GT250GT1000
Feed rate nominal, kg/h30115450
Feed density recommended. %solids w/w60-7060-7060-70
Feed size nominal top microns800-1000800-1000800-1000

Note: The GT60 is a lab-scale unit, but can also be used to treat small volumes in a production environment. It is advisable to scalp out any tramp iron in the feed prior to treatment, by way of magnetic separation.

WashwaterGT60GT250GT1000
Nominal wash water requirements, l/min__122538
| Nominal wash water pressure, kPa303030

A small constant head tank should be located 3 meters above the table deck. Wash water should be free of suspended solids and organic matter. Freshwater is recommended.

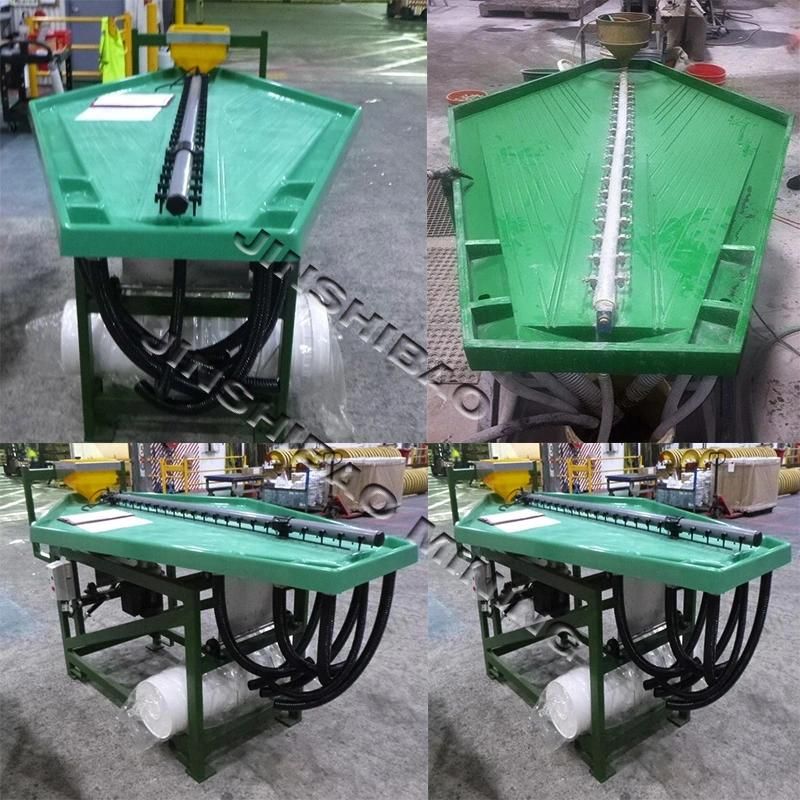

Product details show

2021 Gold Ore Gemini Shaking Table for Sale
2021 Gold Ore Gemini Shaking Table for Sale
2021 Gold Ore Gemini Shaking Table for Sale
2021 Gold Ore Gemini Shaking Table for Sale
