Gravity Separator Spiral Chute for Silica Sand Separation

Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd.
  • Type:Gravity Separator
  • Voltage:0
  • Weight:800kg
  • Material:Fiber Glass
  • Material Feature:Wear-Resistant, Anti-Corrosion
  • Certification:ISO9001:2008, ISO9001:2000, CE, SGS

Base Info

  • Model NO.:BLL-1200
  • Energy Saving:Energy Saving
  • Warranty:1 Year
  • Color:Can Be Customized According to Customer Requiremen
  • Customized:Can Be Customized According to Customer Requiremen
  • Condition:New
  • Outer Diameter:1200mm
  • Feeding Size:0.8-0.037mm
  • Capacity:4-6tph
  • Dimension:1360*1360*5230mm
  • Transport Package:by FCL or LCL
  • Specification:Standard
  • Trademark:Hengchang Silica Sand Separation
  • Origin:Jiangxi Province China
  • HS Code:8474100000
  • Production Capacity:2000 Sets Per Year

Description

Basic Info.

Model NO. BLL-1200 Energy Saving Energy Saving Warranty 1 Year Color Can Be Customized According to Customer Requiremen Customized Can Be Customized According to Customer Requiremen Condition New Outer Diameter 1200mm Feeding Size 0.8-0.037mm Capacity 4-6tph Dimension 1360*1360*5230mm Transport Package by FCL or LCL Specification Standard Trademark Hengchang Silica Sand Separation Origin Jiangxi Province China HS Code 8474100000 Production Capacity 2000 Sets Per Year

Product Description

Gravity Separator Spiral Chute for Silica Sand SeparationGravity Separator Spiral Chute For Silica Sand Separation
Silica Sand Separation is also called spiral chute or spiral chute separator, is the best equipment in mining and ore dressing industries, which is often applied to sort materials with size 0.3 - 0.02 mm, such as ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore and other non-ferrous metals, precious metals and non-metallic minerals.Gravity Separator Spiral Chute for Silica Sand Separation

The working principle of the Silica Sand Separation:

Silica Sand Separation is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.

Usage and Application Fields of Silica Sand Separation

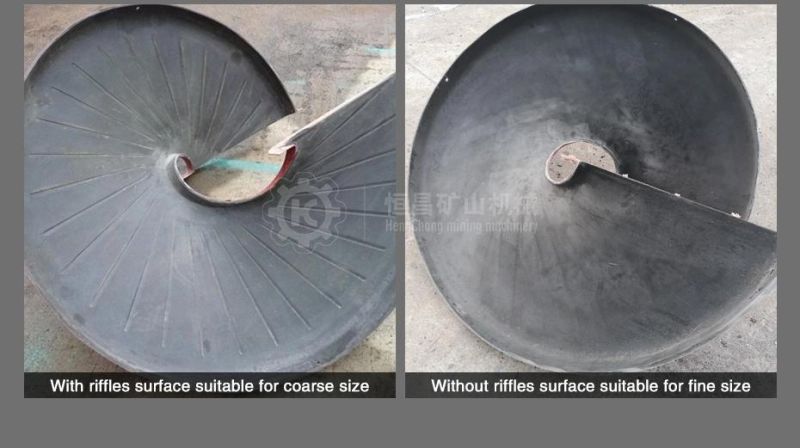

The Silica Sand Separation is a gravity equipment. With the water, action of gravity friction force, minerals would be separated by its gravity difference. Then we could get heavy, middling and light products.It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof,anti corrosion and no noise,properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new high effective equipment.Gravity Separator Spiral Chute for Silica Sand Separation

Features & Benefits of Silica Sand Separation
-Reasonable structure and small occupation area.

-High recovery, high efficiency, and precise separation
-Light in weight, rust and corrosion resistant.
-Simple installation and Minimal maintenance requirements
-Low operating cost and long operating life.
-Reliable running with minimal operator attention.
-Strong adaptability to fluctuation of feeding amount, density, size and grade.


Structure of
Silica Sand Separation

Gravity Separator Spiral Chute for Silica Sand Separation


Technical Parameter List of Silica Sand Separation :
ModelBLL2000BLL1500BLL1200BLL900
External diameter (mm)200015001200900
Inner diameter (mm)360250220180
Screw distance (mm)1200900-675720/540540/360
Ratio (scroll distance/diameter)0.60.60.6/0.450.6/0.4
Transverse obliquity (°)
Star42770427704277042770
Turn3.544283042830
Feeding size (mm)0.4-10.03-10.03-0.30.03-0.3
Feeding thickness (%)20-4530-4530-5030-50
Processing capacity(t/h)15-40429634283142769
Height (mm)6.6-85.55.233.2
Gravity Separator Spiral Chute for Silica Sand Separation
Gravity Separator Spiral Chute for Silica Sand Separation
Gravity Separator Spiral Chute for Silica Sand Separation

Welcome to Visit Our Factory in Your Free Time:
Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd. is located in No.3 Chuangye Road. Guzhang In dustrial Park. Shicheng County. Ganzhou City. Jiangxi Province. China.Our company is engaged in the mineral processing equipment research, development, design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. And mainly the manufacture of the products like as Shaking table. Flotation equipment. Crushing equipment. Magnetic separator. Screening equipment. Classifying equipment. Agitation tank, Feeding equipment. Gravity separation equipment. Wet separation equipment. Spiral chute. Saw-tooth wave jig and Diaphragm Jig. Grinding equipment. Ball mill. Slurry pump. Centrifugal pump, Conveying equipment.

We manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten,lead. zinc. tin. molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile,diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal,precious metals and other minerals. And we have export qualifications, our products sell well all over the world for several years, especially exported to Brazil. India. Indonesia.South Africa. Somalia, Philippines. Malaysia. Sudan, Nigeria. Iran, Russia, Ghana. Kazakhstan Kyrgyzstan.Cambodia,Vietnam,Korea,Mongolia and other countries.
Gravity Separator Spiral Chute for Silica Sand Separation

Gravity Separator Spiral Chute for Silica Sand Separation
Gravity Separator Spiral Chute for Silica Sand SeparationOur service:

 1.Pre-sale services:
  (1)Select equipment model;
  (2) Design and manufactLire products according to clients' special requirement;
  (3)Train technical personnel for dients.

2.Services during the sale:
(1) Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.

3. After-sale services:
(1) Assist dients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3) Train the first-line operators on site;
