Mining Machinery

Dry Type Permanent Magnetic Roll Separator with 16000GS

Weifang Guote Mining Equipment Co., Ltd.
  • Type:Magnetic Separator
  • Voltage:380V
  • Weight:1T
  • Material:Carbon Steel
  • Material Feature:Sturdy Material
  • Certification:ISO9001:2008, ISO9001:2000, CE

Base Info

  • Model NO.:GCT,F
  • Energy Saving:Energy Saving
  • Warranty:1 Year
  • Color:According Requirements
  • Customized:Customized
  • Condition:New
  • Keyword:Magnetic Separator
  • Magnetic Field Intensity:4000-14000GS
  • Belt Thickness:0.1-2mm
  • Material Size:0.083-5mm
  • Power:0.75-6kw
  • Capacity:0.1-10 Ton Per Hour
  • Roller Length:3000-1500mm
  • Roller Diameter:100-250mm
  • Drum Diameter:250-460
  • Advantage:Strongest Magentic Roller
  • Installation:Technical Guidance
  • Product Name:Magnetic Roll Separator
  • Item:Beneficiation Plant
  • Application:Non-Metallic Minerals
  • Date of Delivery:30 Days
  • Transport Package:Container or According Requirements
  • Specification:2*2*2
  • Trademark:GUOTE
  • Origin:China
  • HS Code:8474100000
  • Production Capacity:8920sets,Year

Description

ModerRoller length(mm)Magneric Field Strength of Roller(Gs)Magretic Field Strength of Drum(Gs)Belt thickness(mm)Materials Size(um)Capacity(t/h)Drum Driving Power(KW)  GCT/F3-I30015000-200004000-100000.1-283-50000.4-0.60.75*20.55*1GCT/F3-II0.55*2GCT/F5-I50015000-200004000-100000.1-283-50000.8-10.75*20.55*1GCT/F5-II0.55*2GCT/F8-I80015000-200004000-100000.1-283-50001.2-21.1*20.55*1GCT/F8-II0.55*2GCT/F10-I100015000-200004000-100000.1-283-50002-3.51.5*20.55*1GCT/F10-II0.55*2GCT/F12-I120015000-200004000-100000.1-283-50004-72.2*20.55*1GCT/F12-II0.55*2GCT/F15-I150015000-200004000-100000.1-283-50007-103*20.55*1GCT/F15-II0.55*2

4.Working principle

Dry Type Permanent Magnetic Roll Separator with 16000GS

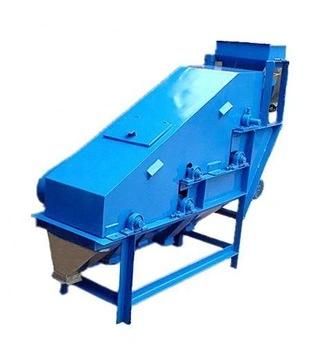

5.Product pictures
Dry Type Permanent Magnetic Roll Separator with 16000GSDry Type Permanent Magnetic Roll Separator with 16000GS
Dry Type Permanent Magnetic Roll Separator with 16000GS
Dry Type Permanent Magnetic Roll Separator with 16000GSDry Type Permanent Magnetic Roll Separator with 16000GS

6.Company Information

Dry Type Permanent Magnetic Roll Separator with 16000GSDry Type Permanent Magnetic Roll Separator with 16000GS

Certification
Dry Type Permanent Magnetic Roll Separator with 16000GS

Dry Type Permanent Magnetic Roll Separator with 16000GS

Our customers :

Dry Type Permanent Magnetic Roll Separator with 16000GS
Dry Type Permanent Magnetic Roll Separator with 16000GS
