Hot Selling Wheel Stone Washing Machine with Crusher

Qingzhou Set Sail Dredging Equipment Machinery Co., Ltd.
  • Type：Wheel Sand Washing Machine
  • Capacity：200-300t,h
  • Water Consumption：40-300t,h
  • Speed of Screw：16rpm
  • Motor Type：AC Motor
  • Motor Power：18.5KW

Base Info

  • Model NO.：QHSM-25
  • Certification：ISO, CE, TUV
  • Rotation Speed：0.8-1.2 r,min
  • Wheel Bucket Diameter：2200mm
  • Screw Diameter：1000mm
  • Warranty：1 Year
  • After-sales Service：Longlife
  • Processing Capacity：50m3-500m3,H
  • Length：15m-30m
  • Main Reducer Model：650
  • Acessory Reducer Size：250
  • Max. Water Consumption：200m3
  • Total Power：55kw-200kw
  • Transport Package：Canvas
  • Specification：Max. capacity 500m3
  • Trademark：Set Sail
  • Origin：China
  • HS Code：8474100000
  • Production Capacity：10000set,Year

Description

    Basic Parameters of Sand Washer     TypeQHSWM12-26QHSWM15-28QHSWM18-30QHSWM20-30Dimension(L*W*H)3400x2300x27003600x2800x29003800x3100x31003800x3400x3100Water wheel dimensionφ2600x1200double rowφ2800x1500doubleφ3000x1800triplexφ3000x2000triplexMaterial8mm8mm10mm10mmFeeding hopper dimension3400x13003600x16003800x19003800x2100Material4mm4mm5mm5mmWorking capacity m³/h50-6080-100120-150150-180Max.approval grain size(mm)≤12≤12≤12≤12Main Power(kw)7.5kw-411kw-415kw-418.5kw-4Submersible pump    Power5.5kw7.5kw7.5kw5.5kw x2Clean Water Flow   m³/h60656560Conveyor    Length mm10000100001000010000Belt width mm60080010001000Frame material12#channel steel12#channel steel12#channel steel14#channel steelElectromotor   kw5.57.51115
4.Product advantage:1Very simple and fast assembly and dis-assembly.  simple operation .easy to control.2 Self propulsion system. can be propulsed in place when moved.3 High efficience. large output and long distance of pump.Pumping depth reaches up to 20-30m underwater4Hull consists of multiple pontoons connected by proven coupling system.5Highly efficient fuel consumption and minimum overall operational costs6Good access to all parts.especially the dredge pump wearing parts.Fresh water cooling system7
OEM. ODM. ISO  .CE .customization are available
5.our wrokshop:
Hot Selling Wheel Stone Washing Machine with Crusher

6.our factory :Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.Factory has manufacture experience more than 20 years.More than 50 certificated engineers and technicians.We have certification and patent more than 50 item. It contains ISO CE etc.Set Sail dredger is sold more than 80 countries .Hot Selling Wheel Stone Washing Machine with Crusher
7. customer visited our factory :
Hot Selling Wheel Stone Washing Machine with Crusher
8. Factory certificate:
Hot Selling Wheel Stone Washing Machine with Crusher

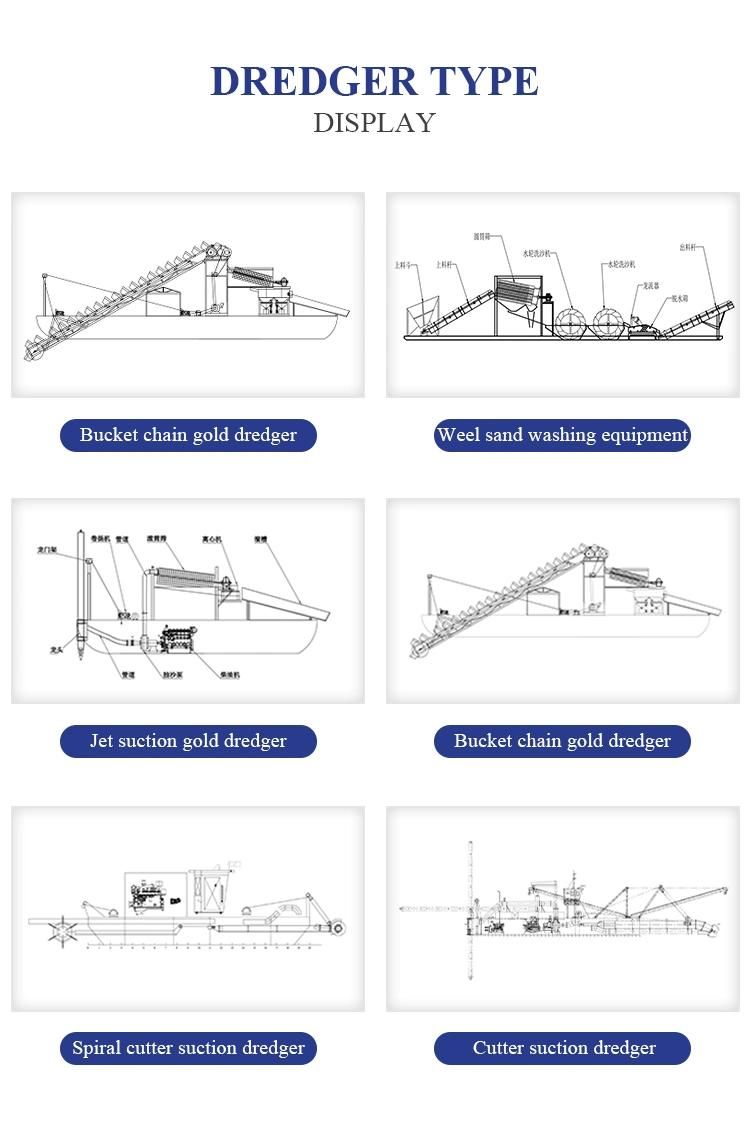

9. other product:
Hot Selling Wheel Stone Washing Machine with Crusher10. Contact card:
