• Model NO.：3YK1230
• Energy Saving：Energy Saving
• Warranty：2 Years
• Color：Green
• Customized：Customized
• Condition：New
• After-sales Service：Spare Parts for Free
• Transport Package：Standard Export Package
• Specification：1800*1100*1200
• Trademark：Effort
• Origin：China
• HS Code：8474
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. 3YK1230 Energy Saving Energy Saving Warranty 2 Years Color Green Customized Customized Condition New After-sales Service Spare Parts for Free Transport Package Standard Export Package Specification 1800*1100*1200 Trademark Effort Origin China HS Code 8474 Production Capacity 200 Sets/Year

Product Description

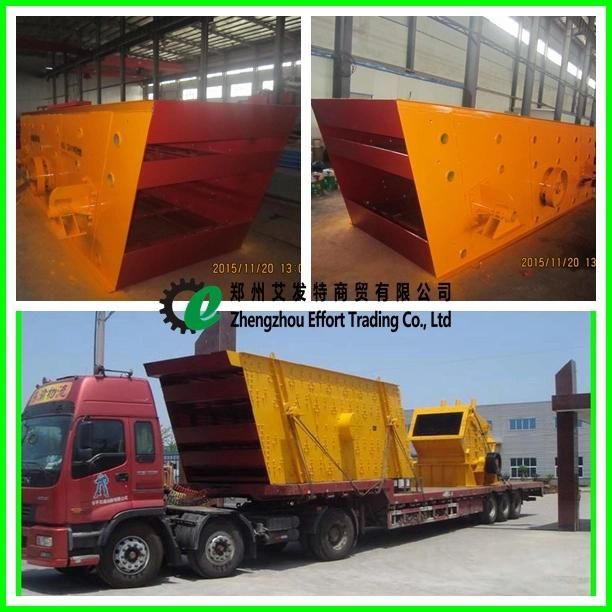

Long Durability Pebble Vibrating Screen, Granite Vibrating Screen

Circular vibrating screen:
High-quality vibrating screen is consisting of vibration source, sieve, screen, shock absorber and bottom care. The side board is made of high-quality steel plate; The side board is connected with beam and bottom by high-quality bolt or ring groove rivet, which is reasonable and durable. High-quality vibrating screen is a new kind of screening equipment, which is mainly used in metallurgy, mine, coal, electric power, chemical industry, especially in metallurgy industry.



Circular vibrating screen working principle:
Circular vibrating screen uses electric exciter as vibrating source; the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce several of products and unqualified products on the screen or under the screen, then discharging from the outlet respectively. It can be used in the automatic production line.
Circular vibrating screen feature:
1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.
2. The beam and case of the screen are connected with high strength bolts without welding.
3. Simple structure, easy to repair.
4. Adopt tire coupling and soft connection makes operation smooth.
5. High efficiency, easy maintenance, sturdy and durable.

Technical Data:

Model	Sieve layer	Sieve area (m2)	Mesh size (mm)	Max feeding size (mm)	Capacity (m3/h)	Vibrating Power (r/min)	Duble amplitude (mm)	Motor power (kw)	Sieve obliquity (o)	Sieve spec. (mm)	Total weight (kg)	Dimensions (L*W*H)(mm)
2YK1225	2	6	4-50	400	8-60	800-970	8	5.5	20	1200*2500	3500	2930*1860*870
3YK1225	3	9	4-50	400	10-70	800-970	8	5.5	20	1200*2500	3850	3070*1860*1210
2YK1230	2	7.2	4-50	400	12-78	800-970	8	7.5	20	1200*3000	4200	3430*1860*870
3YK1230	3	10.8	4-50	400	13-80	800-970	8	7.5	20	1200*3700	4600	3570*1860*1210
2YK1237	2	8.88	4-50	400	15-86	800-970	8	7.5	20	1200*3700	4600	4050*1860*870
3YK1237	3	13.22	4-50	400	16-90	800-970	8	7.5	20	1500*3500	5200	4270*1860*1210
2YK1535	2	10.5	5-50	400	20-125	800-970	8	11	20	1500*3500	5890	4120*2210*1230
3YK1535	3	15.75	5-50	400	21-125	800-970	8	11	20	1500*3500	6700	4360*2210*1610
2YK1545	2	13.5	5-50	400	22-150	800-970	8	15	20	1500*4500	6330	5120*2210*1230
3YK1545	3	20.25	5-50	400	22-150	800-970	8	15	20	1500*4500	6800	5360*2210*1610
4YK1545	4	27	5-50	400	22-155	800-970	8	18.5	20	1500*4500	7800	5930*2210*2060
2YK1548	2	14.4	5-50	400	22.5-162	800-970	8	15	20	1500*4800	6980	5420*2210*1230
3YK1548	3	21.6	5-50	400	22.5-162	800-970	11	15	20	1500*4800	7700	5660*2210*1610
