• Model NO.：QHCSD-180
• Warranty：1 Year
• After-sales Service：Lifelong
• Total Length：50m
• Main Engine Brand and Power：Cummins ,3000kw
• Auxiliary Enigne Power：Cummins ,720kw
• Harbour Generator：Cummins ,103kw
• Dredging Technology：Warman Technology
• Discharge Pipe Diameter：800mm
• Head：66m
• Max.Dredging Depth：17m
• Water Flow：7500m3
• Capacity：1500m3,H
• Discharge Distance：2500m
• Cutter Head Diameter：2350mm
• Cutter Power：500kw
• Draught：2.7m
• Total Fuel Consumption：518L,H
• Transport Package：Canvas
• Specification：32inch water flow 6000m3
• Trademark：Set Sail
• Origin：China
• HS Code：8905100000
• Production Capacity：1000 Sets Per Year

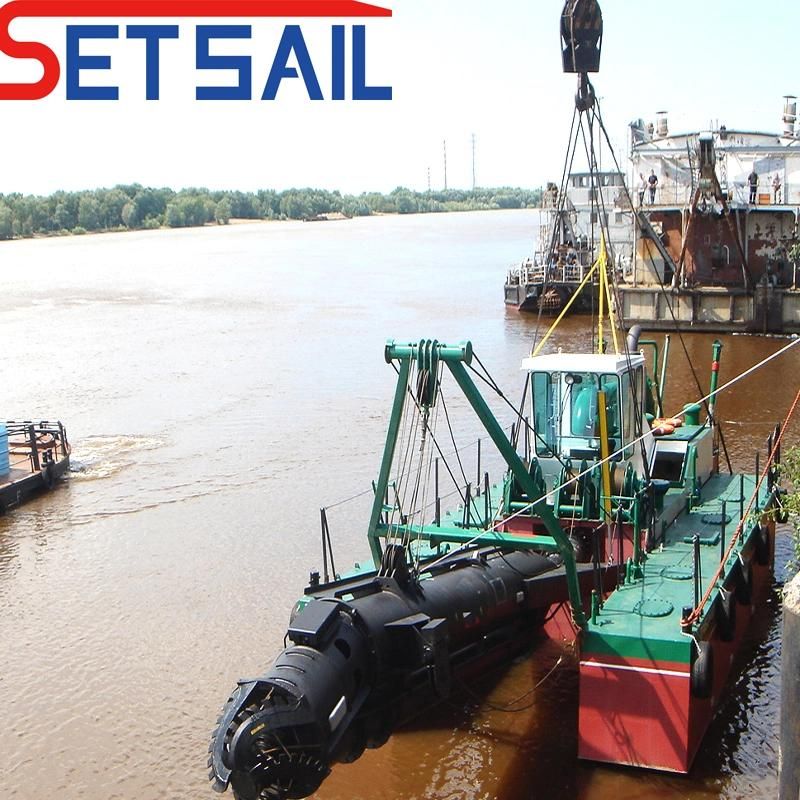

       32 inch cutter suction dredger is the large cutter suction dredger form our factory .it is widely used in the river .lake .sea . reservoir so on large dredging project . all configuration device from the famous state owned  factory and abroad . diesel engine and electric power can avaliable for dredger . hydraulic and Siemens PLC control all dredger .equiped flowmeter .concentration meter and monitor system so on .  a lots of optional installation:anchor boom . trolley so on . it is can reach the high capacity and long continue working time and long discharge distance .       Setsail dredgers are of modular structure which is convenient for the disassembly and transportation. Other characteristics include reasonable design. easy operation. long duration and running continuity. The dredger can be widely used for maintenance dredging. infrastructure dredging. environmental-friendly dredging and sand mining etc. 2. 32 inch cutter suction dredger parameter:Total length 50mHull size 46*12.1*3.8mStructure box structureMain engine brand /powerCummis/3000kwAuxiliary engine brand /powerCummins/720kwHarbour generator
103kwDredging pump Warman techenologyDischarge pipe diameter800mmHead 63mMax.dredging depth 17mWater flow 7500m3Soild sand capacity 1500m3Max. discharge distance 2500mCutter head power 500kwCutter head diameter 2350mDrauft 2.7mDisplacement 1100ton Hydraulic control system Siemens PLC Lifting winch pulling force 280knSwing winch 200kn Total weight 510tTotal fuel consumption 518L/H3. Basic size and parameter:ModelSand and solid capacity Max. dredging depth Discharge distanceQH  200160m3/h 8m 800mQH  250200 m3/h 9m 1000mQH  300300 m3/h 10m 1200mQH  350400 m3/h 11m 1500mQH  400500 m3/h 13m 1500mQH  450600 m3/h 14m 1500mQH  500800 m3/h 15m 2000mQH  550900 m3/h 16m 2000mQH  6001100 m3/h 16m 2000mQH  6501200 m3/h 16m 2100mQH  7001400 m3/h 17m 2200mQH  8001500 m3/h 17m 2500mQH  300D500 m3/h 16m 1500mQH  400D825 m3/h 22m 1500mQH  500D1000 m3/h 25m 2000mQH  600D1800 m3/h 25m 2000mQH  700D2250 m3/h 28m 2500mQH  800D2400 m3/h 30m 2500m4. Picture shows :
