Gold Mine Slurry Pump Submersible Vertical Pump Spare Parts
Shijiazhuang An Pump Machinery Co., Ltd.- Type:Flotation Separator
- Voltage:440V
- Weight:>10T
- Material:High Chrome Alloy and Rubber
- Material Feature:High Chrome Pump Parts
- Certification:ISO9001:2008, CE
Base Info
- Model NO.:BP Gold mine pump
- Energy Saving:Energy Saving
- Warranty:1 Year
- Color:Blue
- Customized:Customized
- Condition:New
- Drive Type:Belt Driven or Coupling
- Shaft Position From The Horizontal:Vertical Pump
- Seal Type:No Need Shaft Seal Water Centrifugal Slurry Pump
- Impeller Suction Way:Single Suction Pump Impeller
- Other Application:Mining, Power Plant, Coal, Metallurgy
- Shaft Length:300-1500mm Submersible Pump
- Bearing:Chinese Top 3 Vertical Spinder Pump
- Motor:Siemens, ABB or as Required Vertical Pump
- More Application:Fly Ash etc Rubber Liner Pump
- Feature:No Shaft Seal Pump
- Application:Mine and Mineral Processing
- Medium:Slurry
- Accessories:Agitator Slurry Pump
- Motor Type:Shaft up Shaft Down
- Suction:Double Suction Pump
- Transport Package:Slurry Pump Export Worthy Wooden Case
- Specification:CE, ISO, SGS Electric pump
- Trademark:An Pump
- Origin:Hebei Shijiazhuang
- HS Code:8413709990
- Production Capacity:20000PCS,Year
Description
Basic Info.
Model NO. BP Gold mine pump Energy Saving Energy Saving Warranty 1 Year Color Blue Customized Customized Condition New Drive Type Belt Driven or Coupling Shaft Position From The Horizontal Vertical Pump Seal Type No Need Shaft Seal Water Centrifugal Slurry Pump Impeller Suction Way Single Suction Pump Impeller Other Application Mining, Power Plant, Coal, Metallurgy Shaft Length 300-1500mm Submersible Pump Bearing Chinese Top 3 Vertical Spinder Pump Motor Siemens, ABB or as Required Vertical Pump More Application Fly Ash etc Rubber Liner Pump Feature No Shaft Seal Pump Application Mine and Mineral Processing Medium Slurry Accessories Agitator Slurry Pump Motor Type Shaft up Shaft Down Suction Double Suction Pump Transport Package Slurry Pump Export Worthy Wooden Case Specification CE, ISO, SGS Electric pump Trademark An Pump Origin Hebei Shijiazhuang HS Code 8413709990 Production Capacity 20000PCS/YearProduct Description
Company Information:
Shijiazhuang An Pump Machinery Co., Ltd's main pump products including pump, slurry pump, mining pump, sump pump and other centrifugal slurry pump could meet various requirements of all the customers
Vertical Slurry Pump Berif introduction:
BP(R) pump is centrifugal vertical sump pump, work under fluid. It widely used for delivery abrasive, high density slurry with large particle in the metallurgy, mine, power plant, chemical, and other industry
Vertical Slurry Pump Detailed specification:
1.Cantilevered shaft design verical pump
2.Double suction semi-open impeller
3.Agitator option keeps solids in suspension
4.models feature full rubber covering for corrosion resistance
5.Recessed impeller option passes oversized material
6.Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
7.No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.

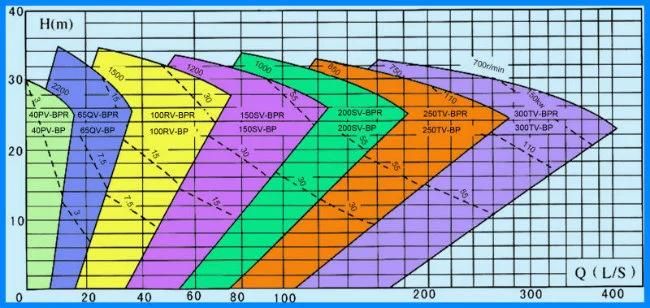

BP(R) Vertical Slurry Pump Performance Chart
Vertical Slurry Pump Performance Parameter Table
P(KW) | Q(m³/h) | H(m) | n(r/min) | η% | (mm) | (mm) | (kg) | |
40PV-BP(R) | 1.1-15 | 7.2-29 | 4-28.5 | 1000-2200 | 40 | 188 | 12 | 300 |
65QV-SP(R) | 3-30 | 18-113 | 5-31.5 | 700-1500 | 60 | 280 | 15 | 500 |
100RV-SP(R) | 5.5-75 | 40-289 | 5-36 | 500-1200 | 62 | 370 | 32 | 920 |
150SV-SP(R) | 11-110 | 108-576 | 8.5-40 | 500-1000 | 52 | 450 | 45 | 1737 |
200SV-SP(R) | 15-110 | 180-890 | 6.5-37 | 400-850 | 64 | 520 | 65 | 2800 |
250TV-SP(R) | 18.5-200 | 261-1089 | 7-33.5 | 400-750 | 60 | 575 | 65 | 3700 |
300TV-SP(R) | 22--200 | 288-1267 | 6-33 | 350-700 | 50 | 610 | 65 | 3940 |
BP(R) Vertical Slurry Pump Show:
![Gold Mine Slurry Pump Submersible Vertical Pump Spare Parts](http://580557.com/uploads/image/2021/03/59/8f/9f/a3c7537b24abad9b408e5cd7f3da1099.jpg)
Shijiazhuang An Pump Machinery Co., Ltd,the main pump products including
slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump
and self priming pump, could meet various requirements of all the customers.
