• Model NO.：STL
• Energy Saving：Energy Saving
• Warranty：1 Year
• Color：Multi Color
• Customized：Customized
• Condition：New
• Capacities：8-80t,H
• Power Type：Diesel Engine or Electricity
• Dimension(L*W*H)：1150*1360*1250
• Usage：Gold Washing and Gold Extracting
• Capacity：50t,H
• Max. Feed Material Size：200mm
• Shaking Speed：950r,Min
• Generator Power：30kw
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：in Container
• Specification：CE
• Trademark：Keda
• Origin：Shandong, China
• HS Code：847410000
• Production Capacity：20sets,Month

Model

STL19

STL30

STL60

STL80

STL100

Capapcity T/H

0.25-0.30

3-5

15-20

40-50

80-100

Feed particles mm

0-3

0-4

0-6

0-6

0-6

Feed density %

0-50%

0-50%

0-50%

0-50%

0-50%

Recoil of water T/H

1.5-2

4-6

10-15

17-25

40-60

Concentrate production

 (kg per time)

2-3

10-20

30-40

60-70

70-80

Motor Power kw

0.75

3

7.5

11

18.5

Cone rotational speed

800

600

460

400

360

Water Pressure MPa

0.04

0.1

0.16

0.18

0.2

Overall Size mm

790×785×790

1150×1360×1250

1970×1670×1750

2300×1800×2200

2500×2000×2400

Weight

300kg

500kg

1300kg

1800kg

2800

2.Advantages:

(1).High recovery rate of fine particles of gold, the recovery rate up to 96% about particles size more than 0.074 mm.

(2).Centrifuge adopts frequency conversion, and it can according to different properties of ore change the rotating speed of centrifugal drum, in order to achieve more suitable for the effect of ore separation.

(3).Water recoil hole in the centrifugal drum inner wall is inclined hole water recoil at work, can more effectively impact the ore material.

(4).Centrifuge water filtration unit can change the waterway direction,and automatic clean filter, avoid the manual dismantling and cleaning filter work.

(5).Centrifugal inner container increases the lattice, in order to prevent heavy ore, and reduced leak of ore.

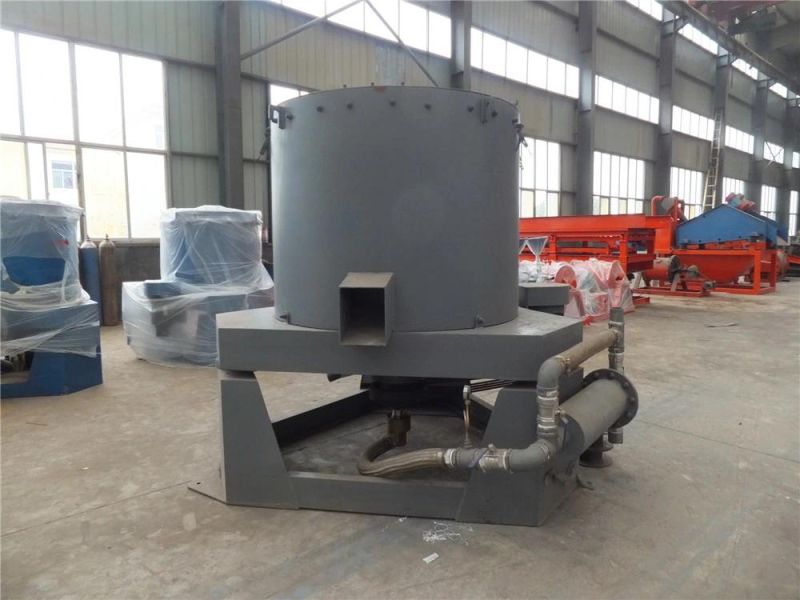

3.Detail images




1)After sales technical support,machine installation,spare part service anticipated training for our customers are provided by our specialist  engineers and technicians.

2)Our technical service department is ready to serve and reslove your  questions via online support,phone calls or on-sit support.

3)We reckon service insight to increase the levels of challenge with our  specialized technical staff.Genial customer relations,technical facilities for  intact spare parts deliverised with spare part labor warranty,affordable  spare parts and on site service are just a few examples of our professinal custoemer approach.

5. Company information:

specialized in dredgers for various industries: Environmental, Sand Production and Mining Machine.

1).Our factory produces a variety of series products , such as : cutter suction dredger, bucket chain dredger, self- propelled dredger, gold panning dredger, iron extracting dredger, sand sieving machines, crusher, gold separator equipment line, and various kinds of machines for mining equipment.

2).We own the professional R&D department , CAD drawing design center , quality control department and Installation & Adjustment to After Service .

3).We can customize special dredging and mining equipment according to different environment and customer requirement which can accomplish the whole set of working procedures of filtering , extracting , separating, washing , classifying and put our qualified products directly. Our experienced engineers will work closely with you to customize a best dredging solution for your particular needs.

4)Now we have developed a dominant role in the dredge manufacturing industry and expand our market to many countries.

Sincerely welcome you to visit our factory. If need more details, please feel free to contact us any time!
