• Model NO.：STLB60
• Energy Saving：Energy Saving
• Warranty：1 Year
• Color：Multi Color
• Customized：Customized
• Condition：New
• After-sales Service：Provide Free Instruction for Installation
• Name：Mobile Place Gold Extraction Gold Mining Equipment
• Keywords：Gold Mining Equipment
• Installation：Engineer Guide
• Warran：One Year Except Wearing Parts
• Power：1.5-11kw
• MOQ：1 Set
• Brand：Hengchang
• Screen Pore：1-60 mm
• Transport Package：Container
• Specification：YTS
• Trademark：Hengchang
• Origin：China
• HS Code：8474100000
• Production Capacity：10 Set,Day

Basic Info.

Model NO. STLB60 Energy Saving Energy Saving Warranty 1 Year Color Multi Color Customized Customized Condition New After-sales Service Provide Free Instruction for Installation Name Mobile Place Gold Extraction Gold Mining Equipment Keywords Gold Mining Equipment Installation Engineer Guide Warran One Year Except Wearing Parts Power 1.5-11kw MOQ 1 Set Brand Hengchang Screen Pore 1-60 mm Transport Package Container Specification YTS Trademark Hengchang Origin China HS Code 8474100000 Production Capacity 10 Set/Day

Product Description



Products Description of 5% Discount Placer Gold Mining Trommel Washing Machine Plant

Gold And Alluvial Sand Processing Plant Works:

1.Ore Feeding: use hopper with the grizzly bar to regulate the feeding size to drum scrubber is below 75mm
2.Washing: use drum scrubber to remove the sticky clay from the gold-bearing ore
3.Screening: use the two-stage vibrating screen to get three fraction output:-6mm,6-12mm,12-75mm
4.Concentrating: use centrifugal concentrator to recovery -6mm gold particle,6-12mm would go to the sluice box.

ADVANTAGE:

1. Mature gold machine line for different proposals(rich experience on this field from 1992 years, done many projects oversea).We made gold washing plant,gold gravity separator line,gold flotation machine line,alluvial sand washing plant,blanket sand separaot line,gold tailing cip and cil plant,Heap leaching and so on.
2. Cost Control (Have lots of site experience, from equipments, installation to personnel site working, we can make a most optimal case to you).

3. EPC-Turkey Project (We have enough capability to make EPC-Turkey project, which will be convenient for you). 4.Free customized proposal, drawings and technical support before ordering

Main equipment

No.	Item	Brand	Notes
1	Feeder	HC
2	Gold washing machine	HC
3	gold centrifugal machine	HC
4	Shaking table	HC
5	Sluice box	HC
6	High frequency furnace	HC

Case of gold washing plant

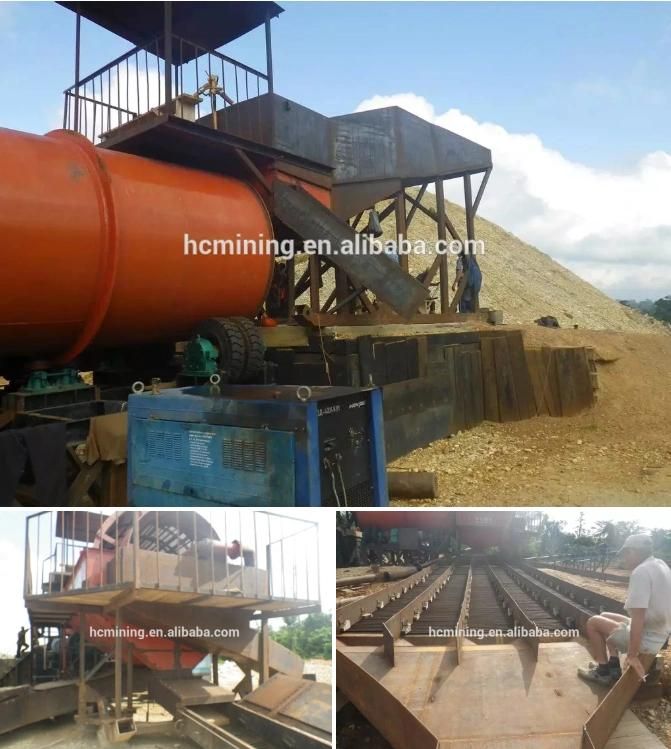

Alluvial sand washing palnt in Peur 200tpd capacity

This client is from Peru, where toxic chemicals are not allowed in gold processing plant. considering that his material has mud , we make this alluvial sand washing plant with 200tpd capacity

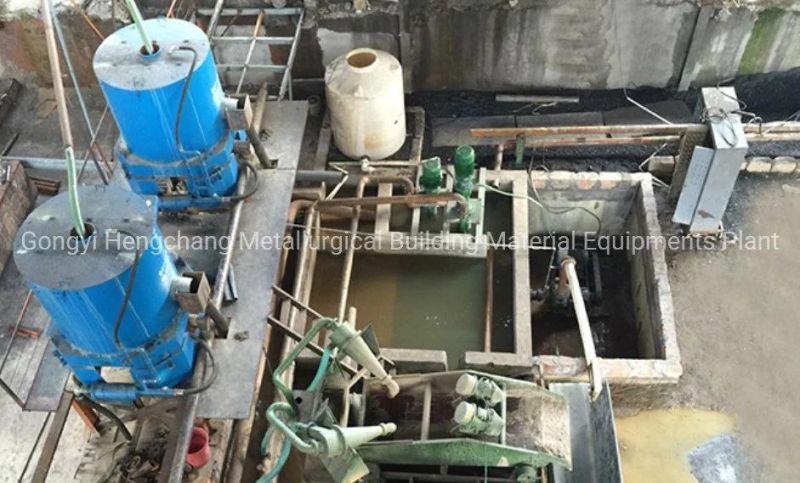

semi-automatic centrifuge line in Tanzania

This client is from Tanzania , customer's raw material is alluvial sand and there has been a gold placer production line project in operation for seven years. Therefore, according to the customer's site situation, we made Suggestions on his replacement of new placer gold project and selected two semi-automatic centrifuges to work at the same time, saving the budget and increasing the output
Details Images






Delivery Of 5% Discount Placer Gold Mining Trommel Washing Machine Plant


Specification

Model	Capacity (t/hr)	Feeding Size(mm)	Feeding Density(%)	Power Requirement(kw)	Cone Rotate Speed	Water Required(t/h)	Dimension(mm)
STLB20	0.5-1.0	0-2.5	0-50	1.1	800	1.5-2.0	800*560*710
STLB30	2.0-3.0	0-4	0-50	2.2	600	4.0-6.0	1280*1030*1135
STLB60	8.0-12.0	0-6	0-50	7.5	460	10.0-15.0	1850*1550*1600
STLB80	10.0-20.0	0-6	0-50	15	400	17.0-25.0	2300*1800*2200
STLB100	50-100	0-6	0-50	18	360	40.0-60.0	2400*2400*2250

Company introduction

Q: For providing you the suitable quotation we need to know the following information ?
1. what's your raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
Remarks: The price will depend on different models.

Q: What about Warranty of the products ?
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.
